AO556-1011 Series

Category:

Description

Product Description

Applications

  • Telemetry, General
  • AQM-37D
  • DSQ-50

Our AO556-1011 series of D-Band IFF Transponder Antennas were developed for target applications such as AQM-37D program.  The antennas are low profile and have high operating temperature range of -65°F to 500°F.

Additional Information

Additional Information

Frequency Range Low (GHz)

1.000

Frequency Range High (GHz)

1.100

Electrical

Electrical

Frequency 1.0 to 1.1 GHz
VSWR 2.0:1 maximum
Gain 2 dbi typical
Polarization Linear
Beamwidth Omnidirectional
Impedance 50 ohms

Patterns

Patterns

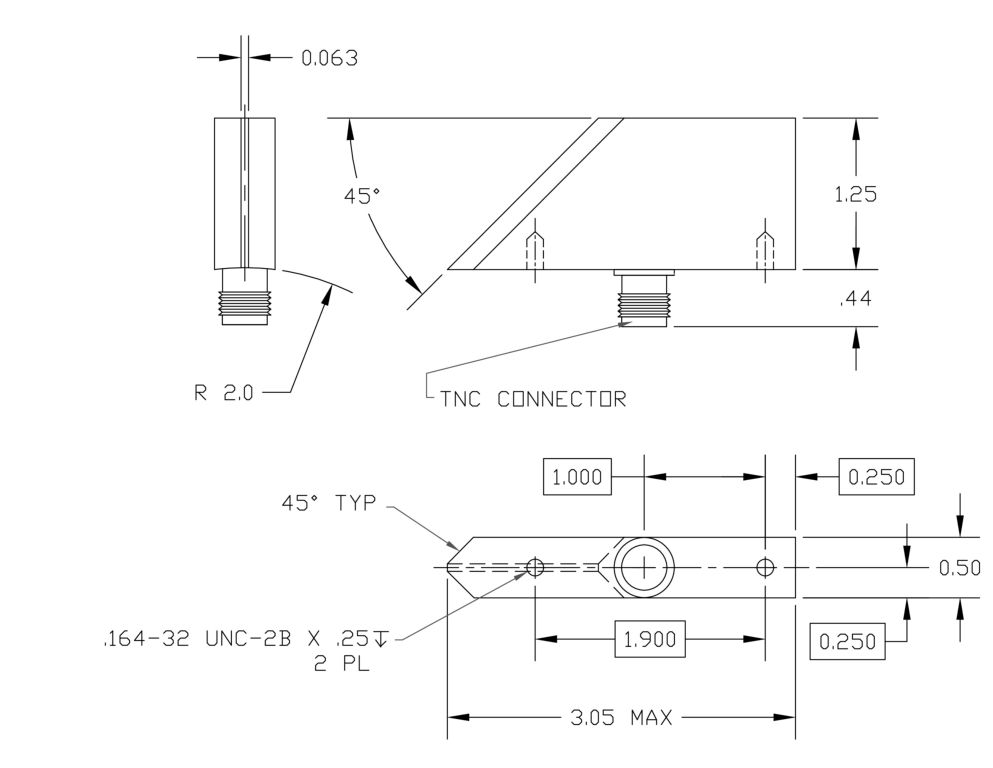

Mechanical

Mechanical

U B Corp Part Number AO556-1011 AO556-1011SMA
Connector type TNC SMA
Weight 5 ounces typical 5 ounces typical
Finish Flat Black Flat Black
AO556-1011SMA

AO556-1011SMA

AO556-1011

AO556-1011

Environmental

Environmental

Environment: Designed to meet the requirements of Mil-E-5400.

Temperature: – 65°F to 500°F

Data subject to change without notice. Contact U B Corp for the most recent engineering specifications.
