GPS Breakaway Coupler L1L2(49.5)8TH

Category:

Description

Description

*For use with GPS Antenna L1L2(49.5)8(HT) with special mounting holes*

Specifications:

  • Frequency: 1575 +/- 10 MHz
  • Connector: SMA Female
  • Mechanical size: approximately 3.65″ X 3.65″ long x .25” thick
  • Radii: 25R
  • Coupling: 3.0 db typical
  • VSWR of Coupled Antenna: <1.5:1 at center frequency when attached to the Antenna under test with 50 ohm load.
  • Calibration chart: Affixed to Coupler
  • Packaged: No carrying case

Additional information

Additional information

Frequency Range Low (GHz)

1.565

Frequency Range High (GHz)

1.585

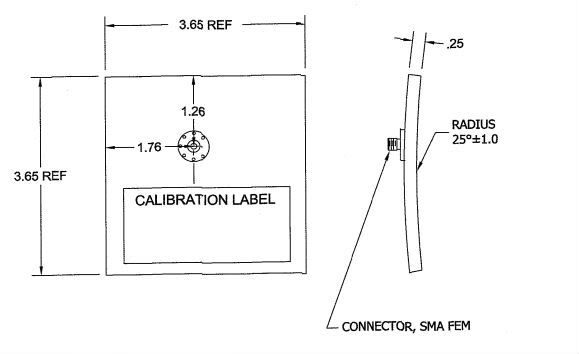

Mechanical

Mechanical

L1L24958TH

L1L24958TH

Data subject to change without notice. Contact U B Corp for the most recent engineering specifications.
